Clean-In-Place (CIP) Systems


Clean-In-Place (CIP) Systems

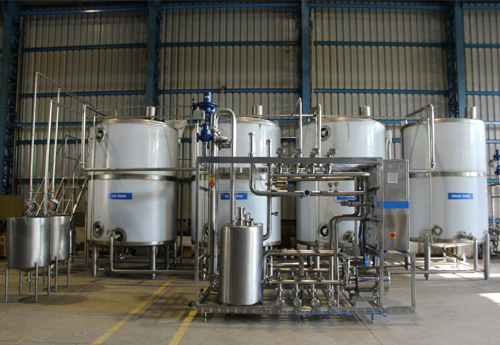

The Clean-In-Place (CIP) system is used in the sanitation of your process piping, tanks and equipment. It allows users to automatically control washing of equipment. Our Clean-In-Place (CIP) Systems are engineered to your specific plant application and utility requirements for effective and efficient process equipment cleaning. Proper CIP design and sizing ensure sufficient flow and appropriate pressure to thoroughly remove residue, rinse effectively, shorten cycle times, reduce operating costs and promote worker safety.

  • Skid mounting (automatic / semi-automatic)
  • 1-2-3-4 tank system
  • One circuit or multiple circuits
  • Five standard volumetric sizes (1,000, 1,500, 2,000, 3,000 and 4,000 liters)
  • Three standard circulation rates (8,000, 12,500, 20,000 LPH)
  • Stainless-steel construction. Skid is heavy-duty box tube construction with glass bead finish & sanitary adjustable ball feet.
  • Tank is AISI SS316, either single jacketed or insulated.
  • Controls are designed to optimize cycle times and reduce chemical and water use.
  • Easy-to-understand Recipe Editor provides access to set points. Defined alarms reduce troubleshooting time.
  • Our dedicated service team provides full technical support during the start-up and after installation.
  • CIP system are pre-wired fully assembled, functionally tested and ready for hooks-up so you have less down time. It is installed quickly, with minimal disruption to your facility.
Multi-Tank Detergent and Rinse Recovery / Reuse
  • Reduces water and waste water costs.
  • Permits recovery and reuse of wash solution and rinse water.
  • Fourth tank may be added for acid recovery and reuse applications.
Paneer & Cheese Processing Systems

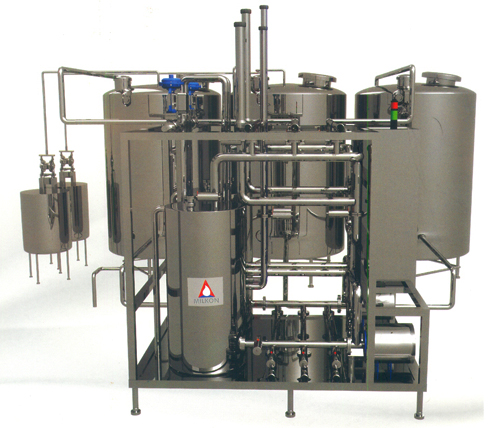

Multi - Circuit Schematic
  • Centralized controls
  • Substantial cost and space-saving advantages over multiple separate units
  • Serves multiple circuits independently and simultaneously
  • Reduced wash and rinse cycle times

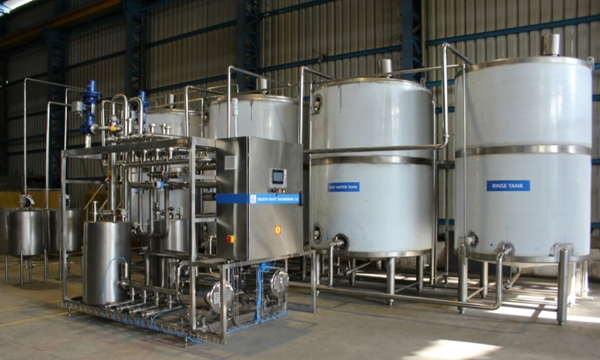

Multi-Circuit and Recovery / Reuse
Paneer & Cheese Processing Systems
Multi-Circuit and Recovery / Reuse
Flow Rate Tank Size

Supply and Return

LPH Single Circuit Double Circuit O.D. Inches
8,000 1,000 2,000 1.5
12,500 1,500 3,000 2
20,000 2,000 4,000 2.5
